TX-200C Walk through Metal Detector

FOB Reference Price:Get Latest Price
$1.00 - $15.00 / Pieces | 1000 Piece/Pieces TX-200C Walk through Metal Detector walk through metal detector (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Model Number:
TX-200C Walk through Metal Detector
walk through metal detector
Power supply:
9V battery
Detection type:
Gold . Silver. Jewlery
12 Months
Low Frequency Induction(VLF)
Walk through Metal Detector for security check
High Sensitivity
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month TX-200C Walk through Metal Detector walk through metal detector
Packaging & Delivery
Packaging Details
TX-200C Walk through Metal Detector is packed in a strong and standard cartons for exporting.
shanghai port
Lead Time :
Deliver within 5days after the deposit arrived.
Product Description

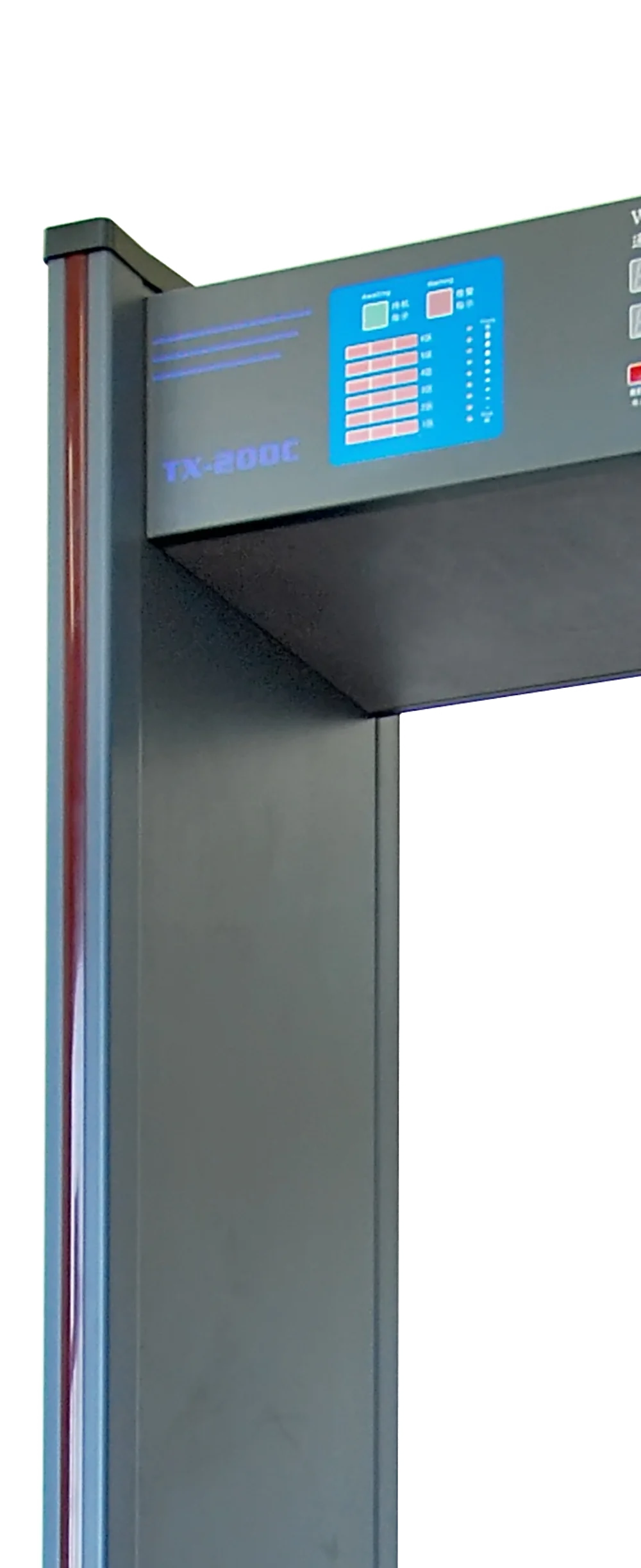

TX-200C Walk through Metal Detector
walk through metal detector

Product Description:

This TX-200C security metal metal detector is a kind of door-shaped metal detecting device, which can quickly

and accurately find the hidden knives, guns and other dangerous objects from people's body. And it is widely used
in security checks in public places and companys.
Transmitter sine-wave causes decaying eddy currents in metal objects inside the sensing area of the WTMD. The
signal induces to the receiver by the eddy currents is sampled and processed in the electronics unit.
The equipment is based on weak electromagnetic field technology, so its use according the instructions does NOT,
pursuant to currently international safety standard, cause and health risks to pregnant women, persons with
pacemaker, floppy disk, films and tapes.

Entertainment venues, exhibition hall, electronic factory, hardware factory, prison, court, etc.


 1. Exact positioning
The TX is a multi-channel metal detector with six overlapping detection zones. The zones create a sequential sine-wave magnetic field within the detection area of the WTMD (Walk-through Metal Detector).
With overlapping construction, sensitivity differences are minimized when metal objects of different shape pass through the WTMD in various orientations.
The product has a unique configuration of the transmit-receive coil. This provides double-side transmission and double-side reception performance. Then the equipment can position the detected object exactly and indicate the alarm position directly.
2. Microprocessor technology

Scanning speed of the electromagnetic wave created by microcomputer control circuit can be controlled exactly.
According to requirements, user can set program by using control panel, which makes sure that sensitivity setting is flexible, reliable and stable.
3. Compound circuit design
The equipment has a counter that registers the number of persons passed through and the number of alarms. The
counter uses Photoelectric Beam Detector, which can respond quickly and sends the identifiable signal to computer,
then decreases the false alarms, the unwanted alarms and false counting.
4. DSP technology
The equipment uses digital signal processor to get reliable function of the metal detector, versatile features, and user friendly operation. In addition, this provides the best interference immunity.
5. Adjustable sensitivity
There is 100-step adjustable sensitivity in each detecting zone, and user can define the sensitivity of each individual zone and system-level sensitivity according to application required.
6. Password protection
System password is 4 digital, which can be set by user. ONLY the password has been inputted correctly that user can change program, sensitivity and other parameters.
7. Serial communication
The equipment can connect to computer through the retained data communication interface (RS-485, RS-232).
8. Modular design
With modular design, the equipment is installed easily and user can remove the faults quickly.
9. The best anti-impact performance
The equipment has the best anti-impact performance under the condition that nobody passes through the WTMD.
10. Electromagnetic sine wave field technology
